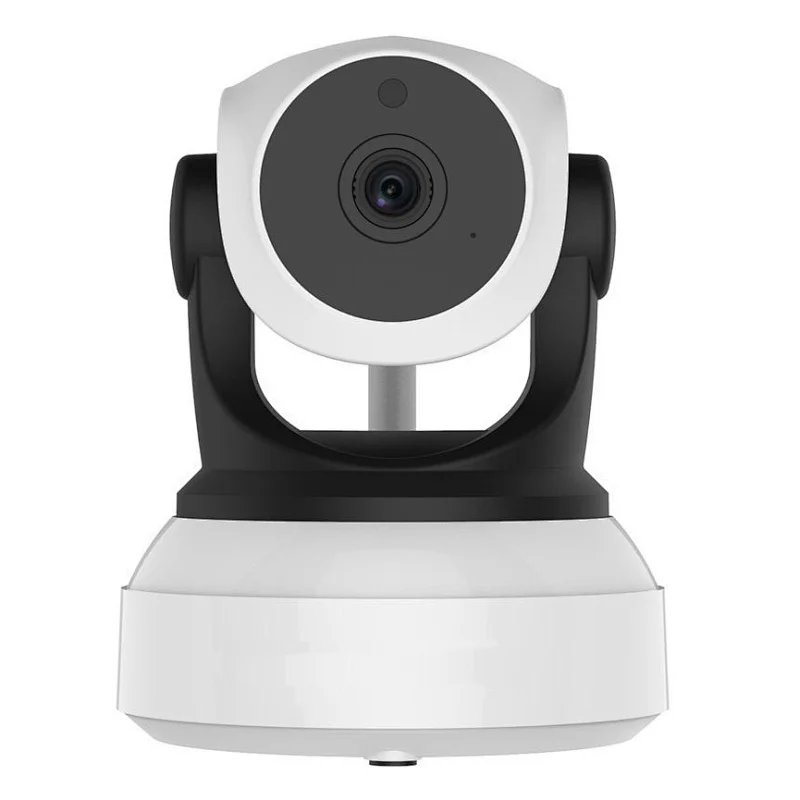

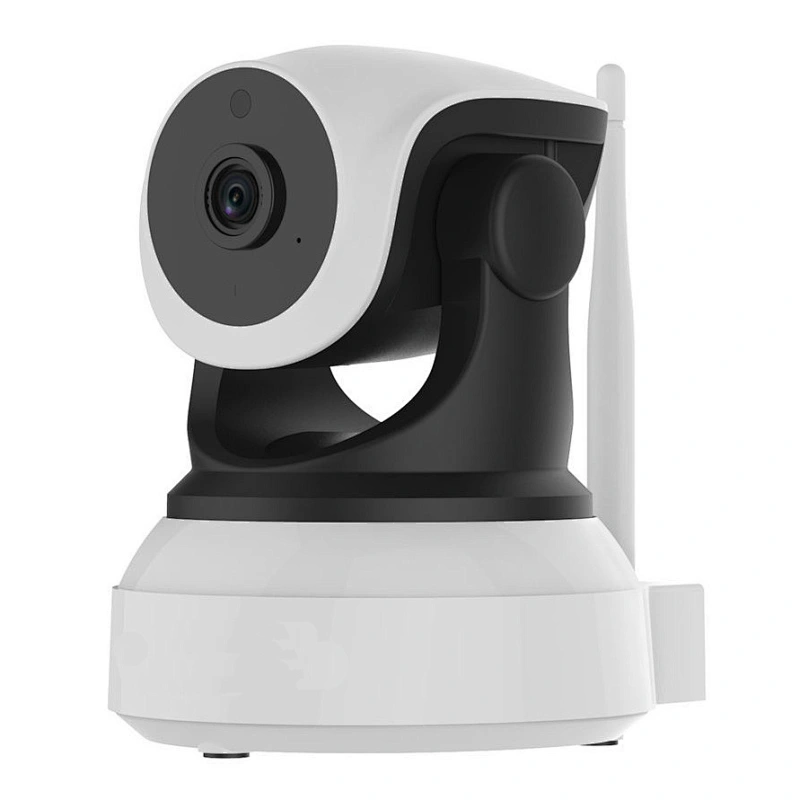

AI Smart indoor network camera wireless 3MP WIFI IP camera cctv camera security system for home/baby monitor camara de seguridad Jiangxi Songcheng Techology co., Itd

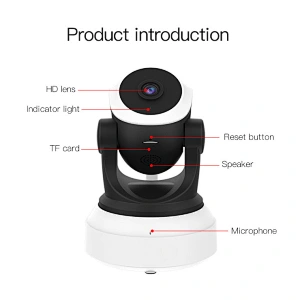

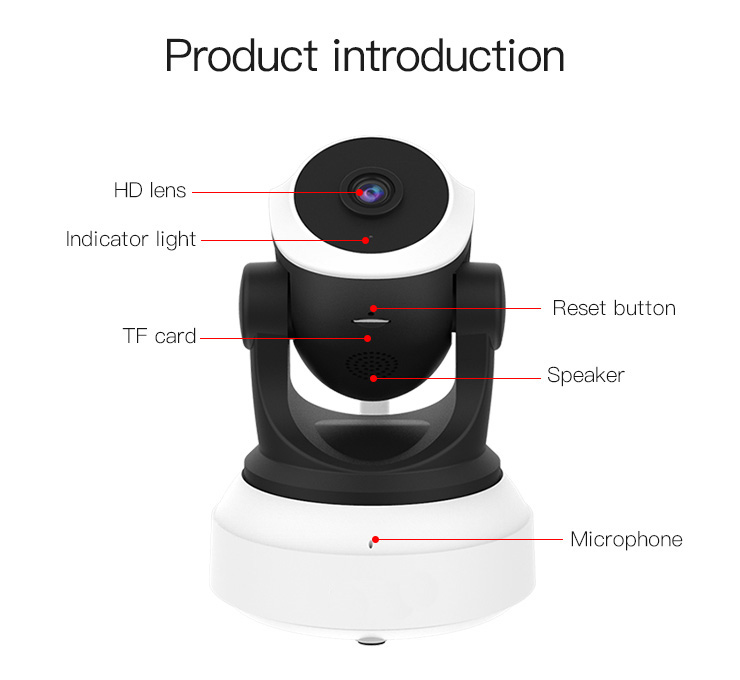

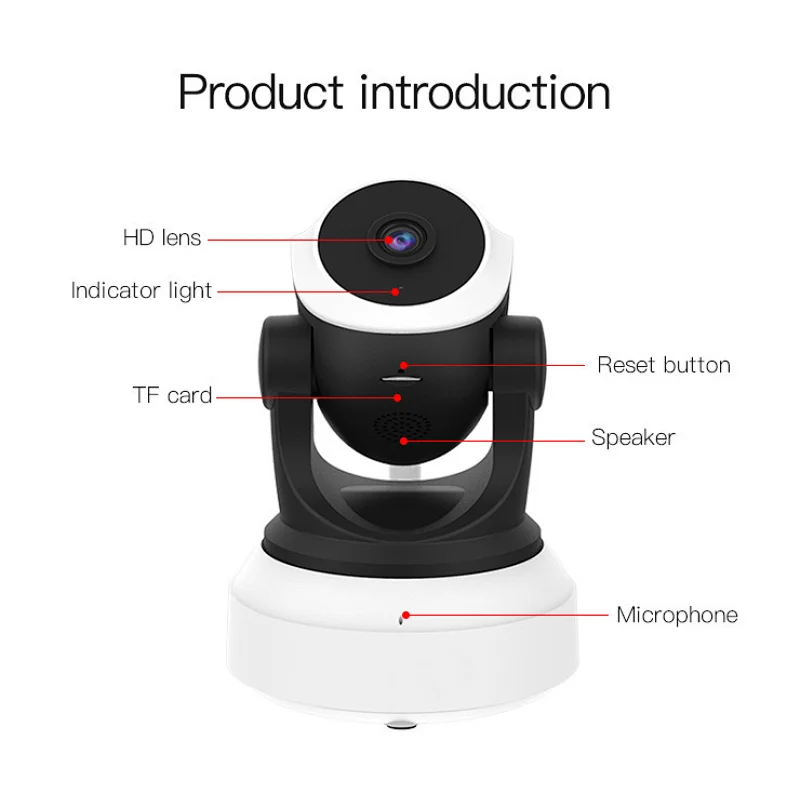

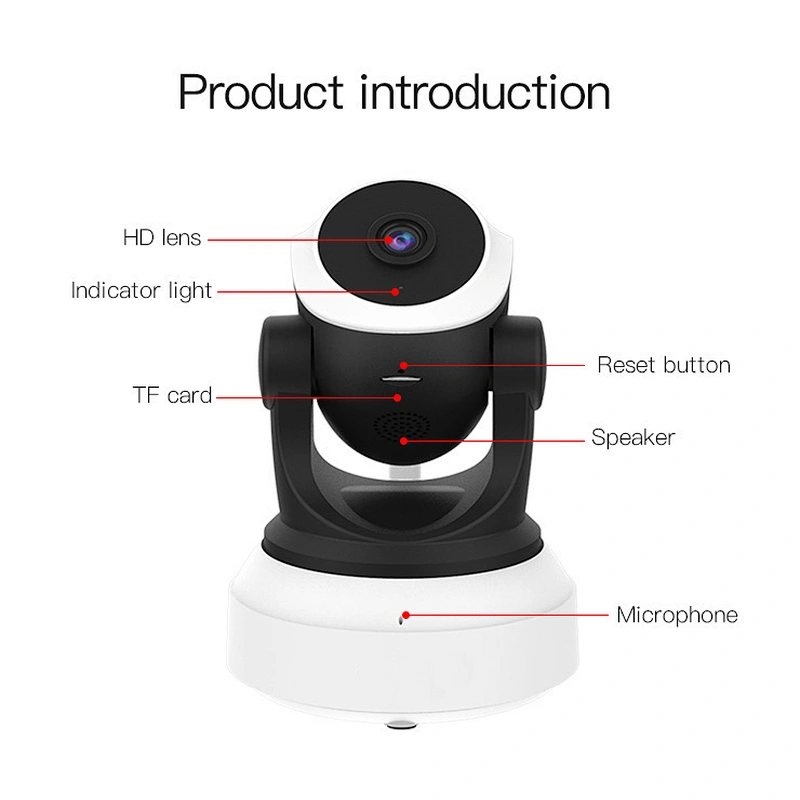

Product Introduction

Features about this item.

1. 12pcs LED, IR distance 10M. Lens 3.6 mm
2. Support ONVIF 2.0, RTSP protocol
3. WPS one key setup WiFi, acoustic wave wifi setting
4. 3MP High Definition.
5. Two-way audio, Remote Pan/Tilt rotate
6. Wi-Fi/802.11/b/g/n,support dynamic IP
7. Motion detection, email alert, FTP upload
8. Iphone, 3G phone, Smartphone supported
9. Multi-language, Firefox, Safari, Google browser
10. Pan:270 degree, Tilt: 80degree, auto cruise
11. Support 256GB TF Card/ Cloud storage.
12. Human detection & Tracking, departure detection.

Product parameters

System	Operation system	Embedded Linux OS
System	Online visitor	Support 4 visitors at the same time
Image Capture	CPU/Image sensor	1/2.9 inch 1080p Progressive Scan CMOS
	Minimum Illumination	0.3~0.5Lux(Color mode),0Lux(B&W Mode)
	Lens/View Angle	4.0mmF2.0/101°(diagonal)
	Night vision	Dual Filter,IR-Cut,6pcs 850nm patch IR LED IR irradiation distance:5~10m
Video	Encode format	H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
	Resolution	Main Stream:1080p(1920×1080)30fps/1296p(2304×1296)30fps Substream:360p(640×360)15fps
	Bit Rate/FPS/Frequency	128~4096kbps/1~30pfs
	Image adjustment	Brightness and contrast can be adjusted
Audio	Input	Built-in -38 dB microphone
	Output	Built-in speaker(8Ω1W)
	Sampling frequency / width	8KHz/16bit
	Compression standard	ADPCM/32kbps

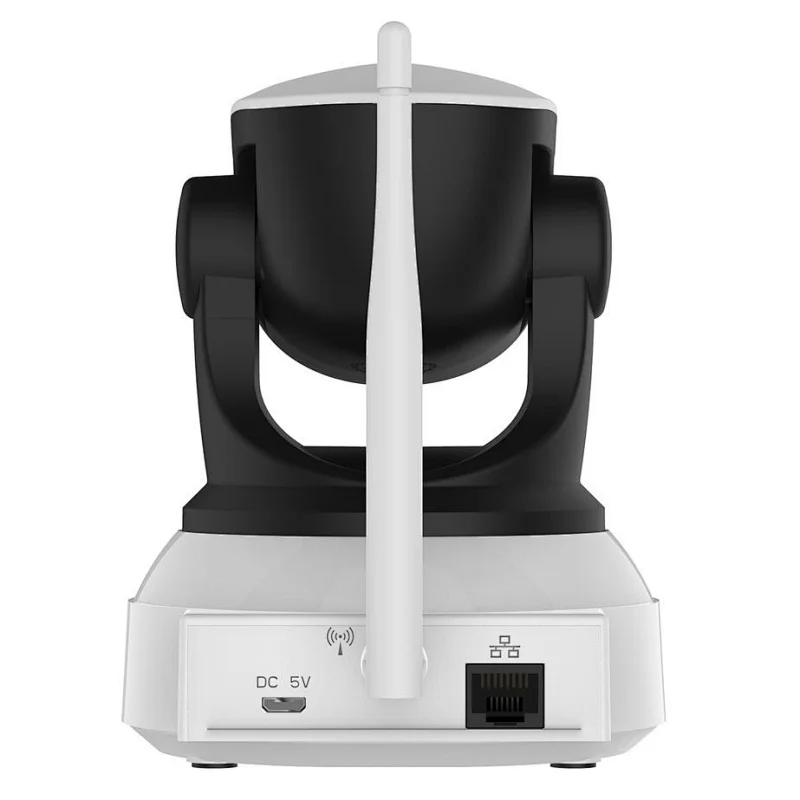

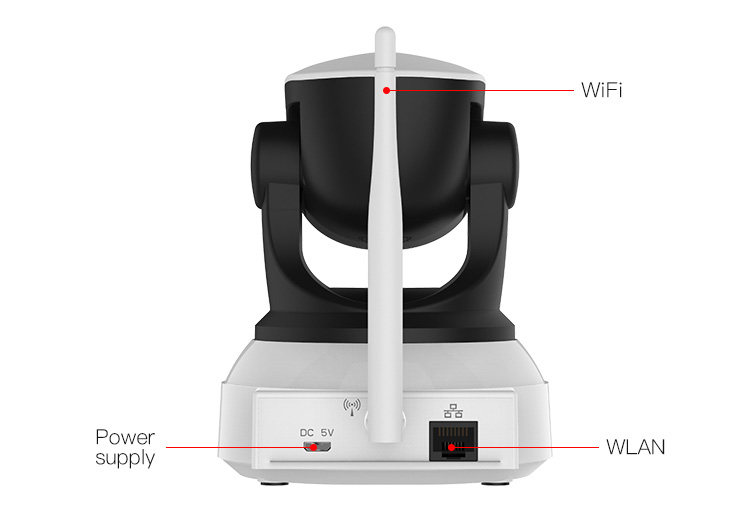

Network	Ethernet	10Base-T / 100Base-TX, RJ45 connector
	Protocols	TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc
	Wireless LAN	IEEE802.11b/g/n
	Wireless LAN Frequency	2.4~ 2.4835GHz
	Wireless LAN security	64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
Pan-tilt	Pan-tilt	Pan:345°,Tilt:84°
Pan-tilt	Preset position	PC APP:support 16 positions, phone APP:support 5 positions
Memory	Socket	TF Push-push socket,Maximum support 256GB; cloud storage;NVR;NAS
Alarm	Alarm Trigger	Motion detection, Human detection, Human tracking, Smoke detector alarm detection, absence monitoring, Electronic fence
Physical Environmental	Rated voltage	DC 5V±5%
	Battery	3.7V 2500mAh 18650 lithium battery
	Power consumption	Related power:2.7W(IR LED on), Maximum Power: 3.5W(Pan&Tilt on)
	Operating condition	Temperature:-10~50℃,humidity:<90%
	Weight	Net:300g Gross: 570g (Note: in kind prevail)
	Package size	197157120 mm(L×W×H)
