Product Introduction

Product parameters

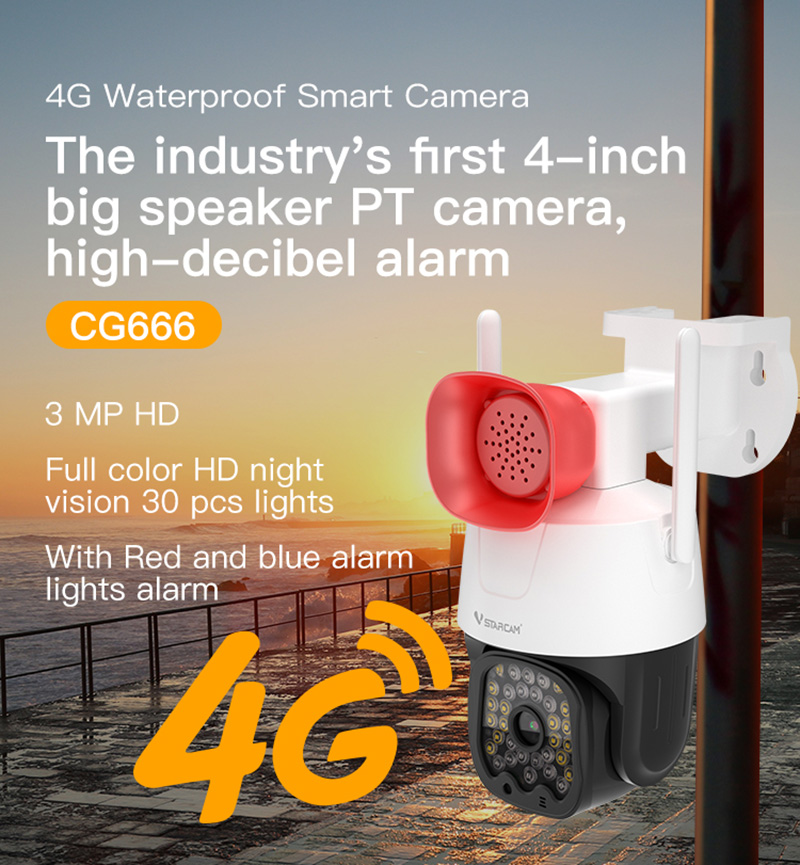

Item#	CG666
Version	1、South Asia Version 2、European Version （different version, different price, pls contact us for more information）
System	Operation system	Embedded Linux OS
System	Online visitor	Support 4 visitors at the same time
Image Capture	Image sensor	1/2.9 inch 1080p Progressive Scan CMOS
	Minimum Illumination	0.3~0.5Lux（Color mode）,0Lux（B&W Mode）
	Lens	4.0mm@F2.0

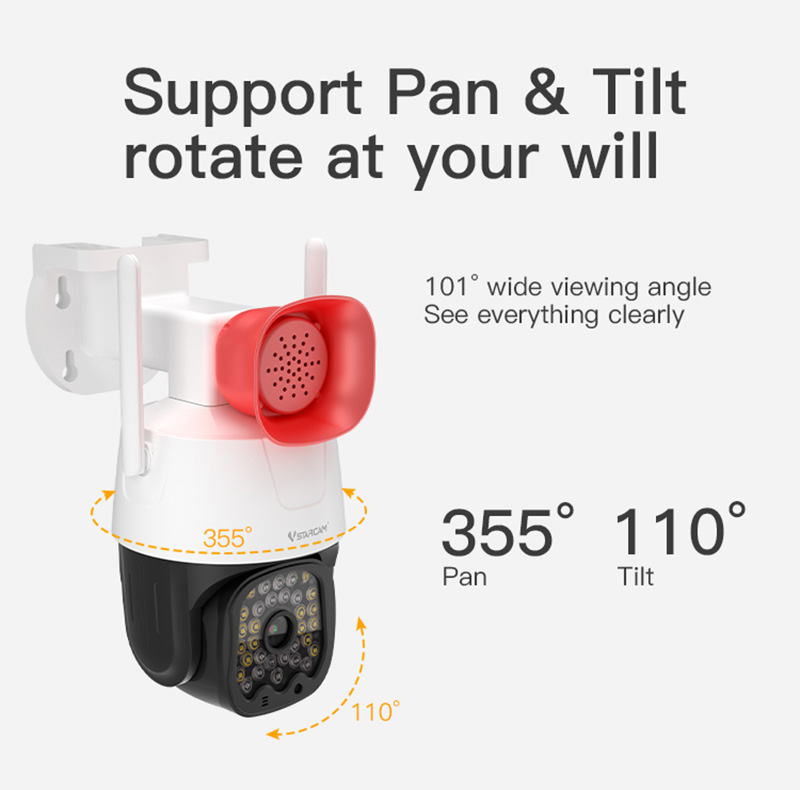

	View Angle	102°（Diagonal）
	Night vision	Automatic switching of dual filters, two 850nm infrared lamps and two high-power white lamps, with irradiation distance of 15-20 meters
Video	Encode format	H.264+/H.264 main profile/Motion-JPEG/JPEG
	Streams	Main stream：1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream：360p(640×360)@15fps
	Bit Rate/Max Fps	128～4096kbps/30pfs
	Image adjustment	Brightness and contrast can be adjusted
Audio	Input	Built in -28db microphone
	Output	Built-in 8Ω2w speakers
	Sampling frequency / width	8KHz/16bit
	Compression standard	ADPCM/32kbps
Network	Ethernet	10Mbps/100Mbps adaptive /RJ45 interface
	Protocols	TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.
	4G(EU) network	WCDMA：B1/B5/B8 FDD：B1/B3/B5/B7/B8/B20 TDD:B38/B40/B41
Alarm	Alarm Trigger	Support motion detection, humanoid detection, crying monitoring, smoke detector alarm detection, absence monitoring
Physical Environmental	Rated voltage	DC12V±5%
	Power consumption	Related power:6.5W(IR on)
	Operating condition	Temperature:-10～50℃,humidity:＜90%
	Weight	Net: TBD g Gross：TBD g(Note: in kind prevail)
	Package size	190x105x230mm(LWH)

Send Message

Message Content

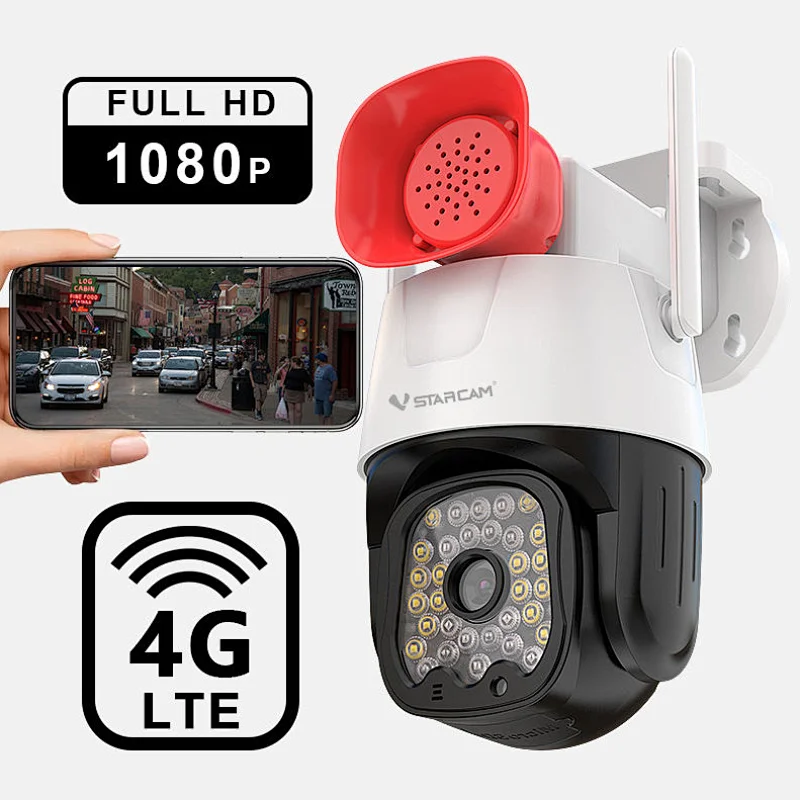

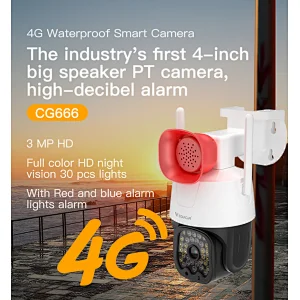

Outdoor 3Mp 4G waterproof PTZ camera security wifi network cctv IP camera with sound and light alarm
